Title Block Reader

Turn printed title-block information into a reviewed drawing register.

Runs on your device
No sign-in. No file upload.

01 Read a drawing

PNG, JPEG or PDF25 MB per file · up to 10 files; review one sheet at a time

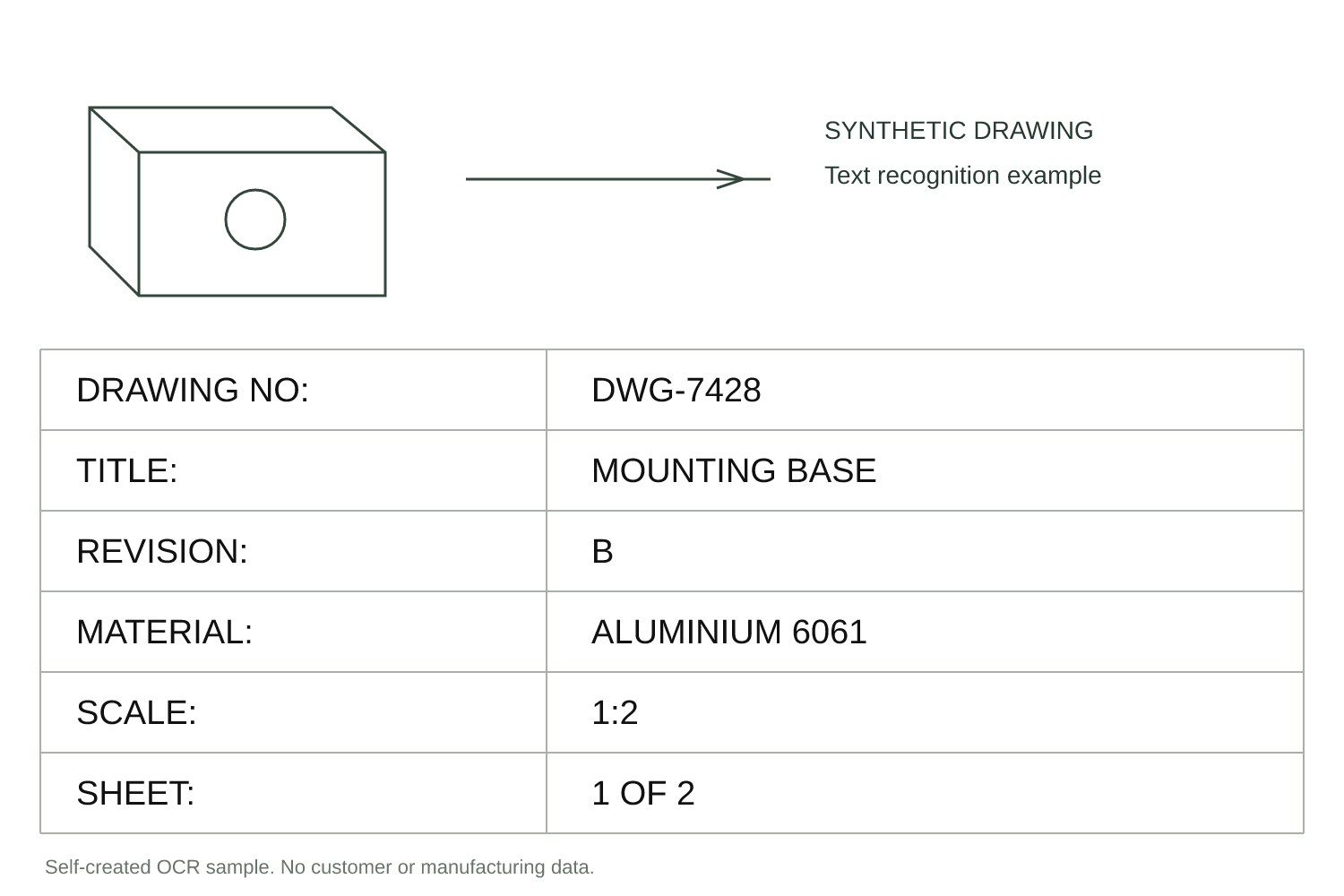

Choose a clear drawing, or try the synthetic sample.

Text language

Recognition reads this crop on this page. Other PDF sheets are not included automatically.

02 Review title-block fields

Read the source, check each value, then add this sheet to your register.

Drawing number *Drawing titleRevisionMaterialScaleSheet

I checked these fields against the drawing.

Suggestions need visible labels such as Drawing No, Title and Rev with their values on the same line. Blank fields stay blank; other layouts can be entered manually.

03 Drawing register · 0 sheets

Your reviewed sheets will appear here. Read a drawing to get started.

Same filename can occur in different uploads. Source and PDF page are kept so you can review duplicate drawing numbers. Refreshing clears this register; export it before leaving.

Build a register from the drawings you have

Choose the sheet. Select up to 10 files and choose the required PDF page.
Read and review. Crop around its title block, check source text and correct the fields.
Add and export. Add each reviewed sheet, then download one CSV with its source filenames.

Only printed title-block information is collected. A material in the title block does not describe every part in an assembly. OCR can misread revisions and drawing numbers; this register is not a document approval system.
