P&ID Tag Check

Compare reviewed P&ID tags with an equipment or instrument list.

Runs on your device
No sign-in. No file upload.

Prefixes to look for

Comma-separated letters, for example P, PT, FT, TK. Tags such as PT-101 or P-002A are supported.

01 Read a drawing

PNG, JPEG or PDF25 MB per file · Files stay on this device

Choose a clear drawing, or try the synthetic sample.

Text language

Recognition reads this crop on this page. Other PDF sheets are not included automatically.

02 Review and compare tags

Drawing tagsOne occurrence per line. Correct OCR and add missed tags. You can also paste a list without using OCR. I checked the drawing tags against the source.Reference tagsOne tag per line, or a UTF-8 CSV with one Tag column. Matching ignores letter case and spaces around hyphens; leading zeros are kept.Choose reference CSVUp to 1 MB

SYNTHETIC WORKED EXAMPLE

Does this P&ID agree with the instrument list?

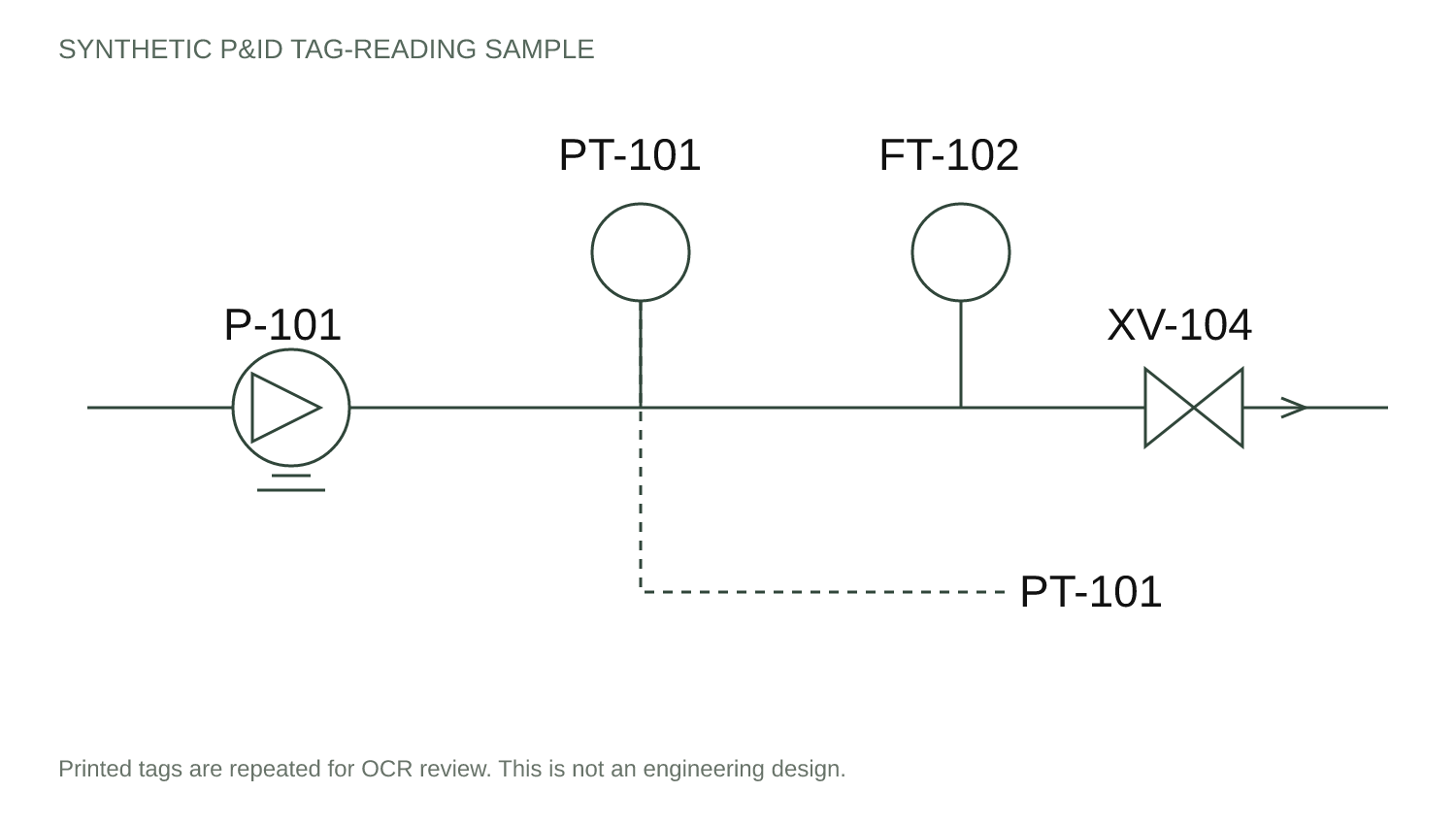

Synthetic pump loop showing P-101, FT-102, XV-104 and two printed occurrences of PT-101. — Use the actual sample drawing in the reader above. Open the image to inspect it at full size.

Expected findings after source review

Only in drawing: XV-104 — check whether the reference list is missing an entry.
Only in list: TT-103 — check whether it belongs on this drawing or a different sheet.
On both lists: P-101, PT-101, FT-102. PT-101 appears twice on the drawing and once in the list.

Read the sample. Choose Try a sample, then Read text. Check the suggested tags against the drawing; correct or add any missed occurrences.
Confirm and compare. Tick the source-review checkbox, choose Use sample reference, then Compare tags.
Review the differences. Check the two unmatched tags and the repeated PT-101, then export the comparison as CSV.

What does a match tell you?

Matched means the identifier is present on both reviewed lists, even when occurrence counts differ. A repeated printed tag is not necessarily a duplicate piece of equipment. Unmatched tags are review candidates; this tool does not validate connections, process safety, equipment counts or physical layout.

For your own drawing, set the prefixes used by your project and select the required page and crop. OCR can miss tags inside symbols or with split labels. Check every suggestion and add missing tags before comparing.
